COMMODITY OVERVIEW

• ◆

  Item：PILOT BORED V-BELT PULLEY EUROPEAN STANDARD

•


• ◆

  Groove Type：SPC

•


• ◆

  The Number of Groove：1; 2 ; 3 ; 4 ; 5 ; 6

•


• ◆

  Material：G3000

•


• ◆

  Surface Treatment: E-Coat

•


• ◆

  Standard：ISO 4183 GB/T 10412

FEATURES AND BENEFITS

• ◆

  I. The belt is an elastomer that can mitigate load impact and run smoothly without noise

•


• ◆

  II. Overload will cause the belt to slip on the wheel, thus playing the role of protecting the whole machine

•


• ◆

  III. manufacturing and installation accuracy is not as strict as meshing drive, easy to maintain, no lubrication required

•


• ◆

  IV. By increasing the length of the band to accommodate the working conditions with a large center distance

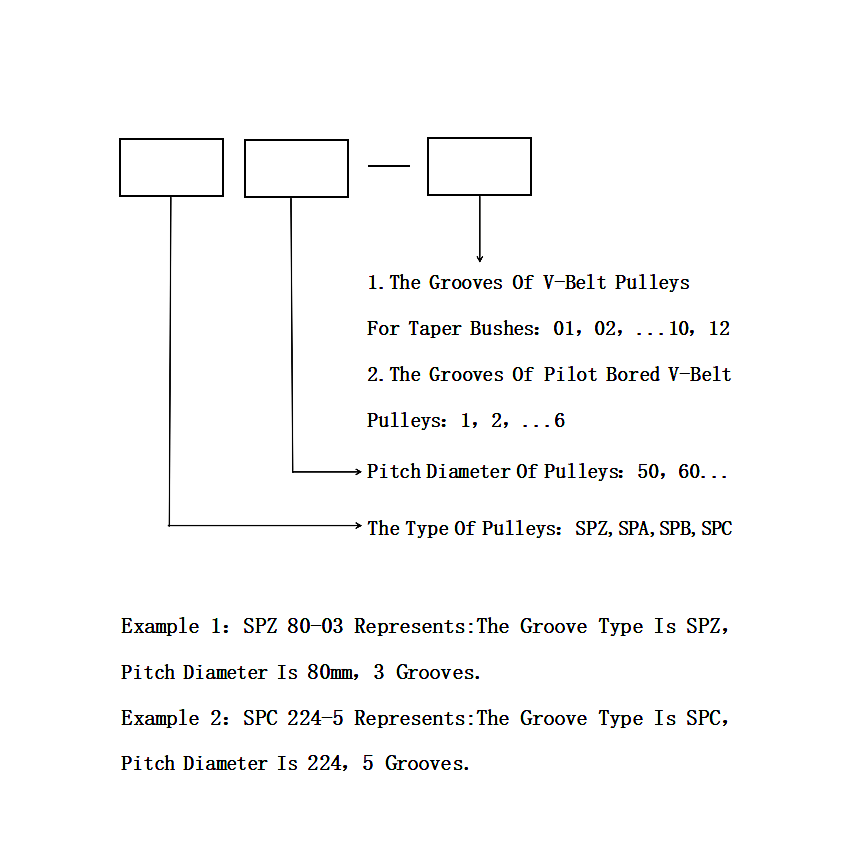

V-BELT PULLEYS EUROPEAN STANDARD MODEL NAMING RULE

PILOT BORED V-BELT PULLEY EUROPEAN STANDARD SPC 1 SCHEMATIC DIAGRAM

PILOT BORED V-BELT PULLEY EUROPEAN STANDARD SPC 2 SCHEMATIC DIAGRAM

PILOT BORED V-BELT PULLEY EUROPEAN STANDARD  SPC 3 SCHEMATIC DIAGRAM

PILOT BORED V-BELT PULLEY EUROPEAN STANDARD  SPC 4 SCHEMATIC DIAGRAM

PILOT BORED V-BELT PULLEY EUROPEAN STANDARD  SPC 5 SCHEMATIC DIAGRAM

PILOT BORED V-BELT PULLEY EUROPEAN STANDARD  SPC 6 SCHEMATIC DIAGRAM
