COMMODITY OVERVIEW

• ◆

  A、B、C、D  American Standard Manufactured according to：Classical V-Belts ANSI/RMA IP-20

• ◆

  3V、5V、8V  American Standard Manufactured according to：Narrow V-Belts ANSI/RMA IP-22

• ◆

  2L、3L、4L、5L  American Standard Manufactured according to：Light Duty V-Belts ANSI/RMA IP-23

• ◆

  J、L、M  American Standard Manufactured according to：V-Ribbed Belts ANSI/RMA IP一26

FEATURES AND BENEFITS

• ◆

  I. The belt is an elastomer that can mitigate load impact and run smoothly without noise

•


• ◆

  II. Overload will cause the belt to slip on the wheel, thus playing the role of protecting the whole machine

•


• ◆

  Ⅲ. The grooves of most American standard pulleys are suitable for several different belt types, and the belt design and application are relatively flexible.

•


• ◆

  Ⅳ. There are many types of American standard pulley grooves and taper bushings. Some pulleys and bushings are allowed to be installed on the front and back, which has become a solution for harsh conditions in different occasions.

•


• ◆

  V. American standard pulleys and taper bushings can achieve precise balance control and perform well in transmission

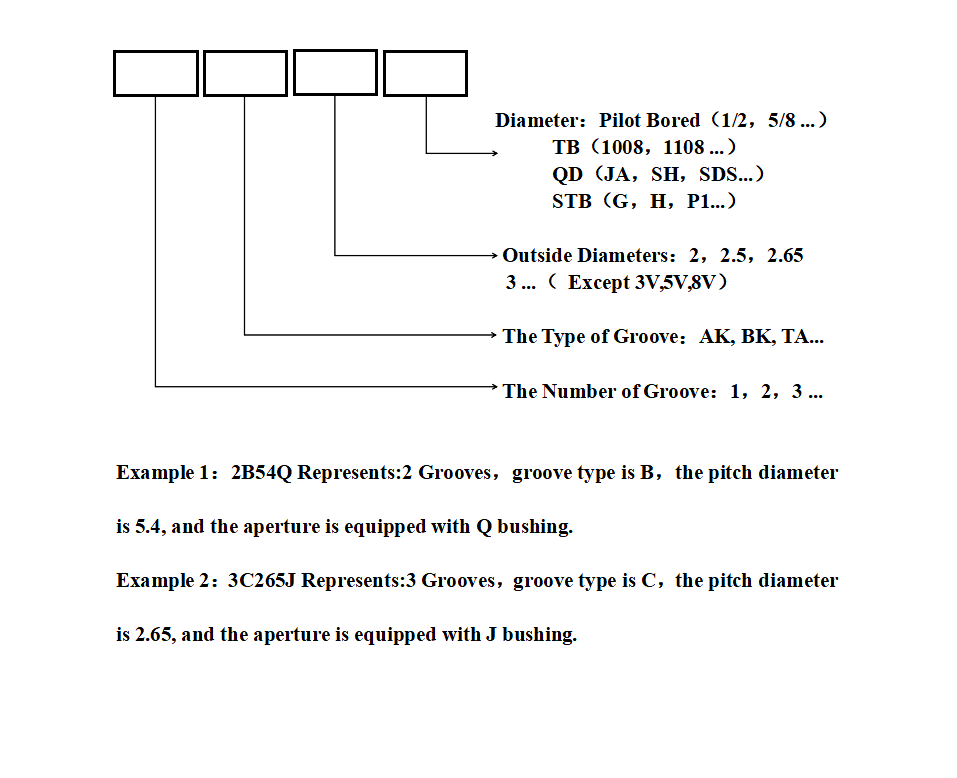

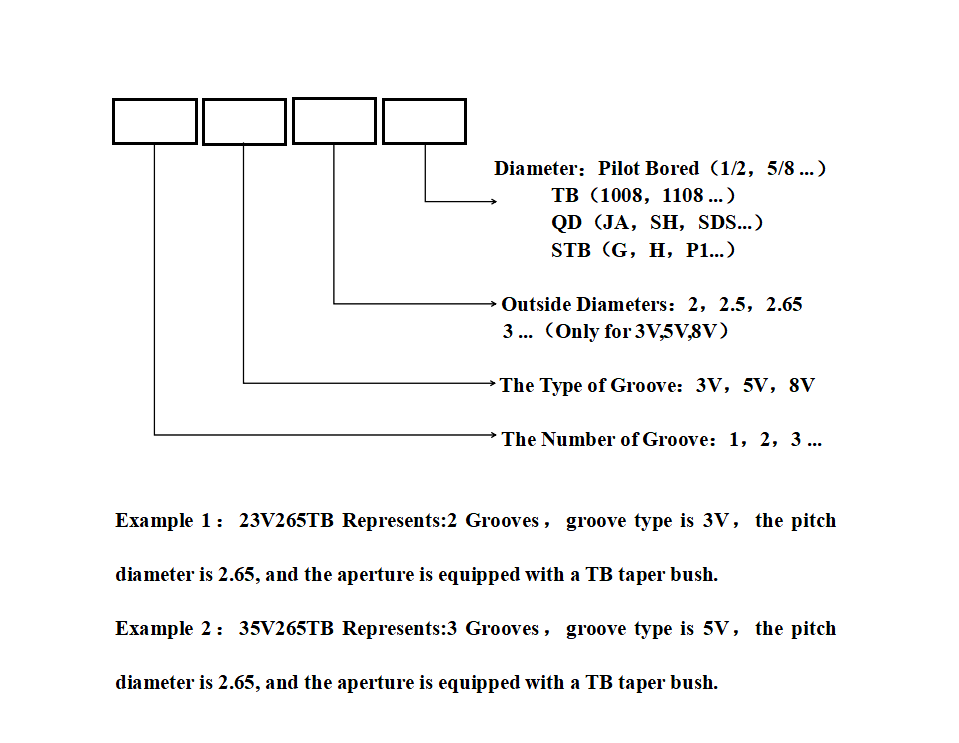

AMERICAN STANDARD PULLEYS-- MODEL NAMING RULE

V-BELT PULLEY AMERICAN STANARD -- TA SERIES SCHEMATIC DIAGRAM

美标V带轮 TB Series 产品SCHEMATIC DIAGRAM

美标V带轮 TC Series 产品SCHEMATIC DIAGRAM
